Tyco vertical sprinkler head TY3641
++ Specially designed Nozzle ++ Special Reaction Standard Coverage ++ Spray Amount K = 80 ++ Meet VdS standard
Tyco vertical sprinkler sprinkler head TY3641 belongs to the TY-B series of special response type, standard coverage nozzles with spray flow K= 80 LPM/bar½). They are designed in accordance with VdS standards.

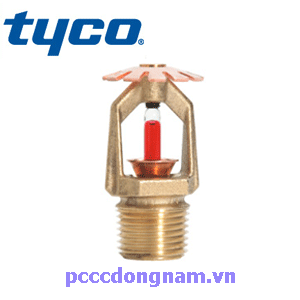

Nozzle-sprinkler-Tyco-upright-TY3641
Technical detailed description of Tyco vertical sprinkler sprinkler head TY3641
- Meet the standard: VdS
- This type of nozzle can be installed in an up or down fashion, creating a spherical discharge pattern with 50% of the water flow upwards and 50% of the water flow downwards.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K=80 LPM/bar½.
- Nozzle size: 1/2 inch NPT (DN15).
- Activation temperature:
+ 135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue tinted glass tube
- Outer plating material: brass or Cr
You can know more information about other nozzles distributed by Dong Nam Company in Vietnam market
You will receive a quote from us as soon as possible..
