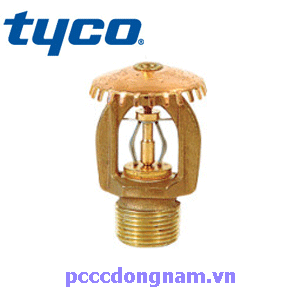

Tyco upright sprinkler sprinkler TY5111
Series ELO-231 Upright and Pendent Sprinklers Standard Response, Standard Coverage Model/Sprinkler Identification Numbers
Tyco upward sprinkler sprinkler head TY5111 belongs to the ELO-231 series of standard reactive sprinklers, has standard coverage with a spray flow rate of K 11.2. The nozzle TY5111 has a large spray volume, so it is suitable for use in warehouses with high shelves.
Specifications of tyco upward sprinkler sprinkler head ty5111
- Meets standards: UL, C-UL, FM and NYC
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=11.2 GPM/psi½ (161.3 LPM/bar½).
- Nozzle size: 3/4 inch NPT (DN20)
- Activation temperature
+ 165°F (74°C) unpainted frame
+ 212 °F (100 °C) white painted frame
+ 286 °F (141 °C) blue painted frame
- TY5111 with higher flow at low pressure is eligible to replace 5.6 or 8.0 K factor injectors
- The nozzle is covered with wax or a lead plated layer to help prolong the life of the copper alloy components in the nozzle to avoid corrosion when exposed to the environment.
- Can install additional protection frame “WSG-2 Guard & Shield”
