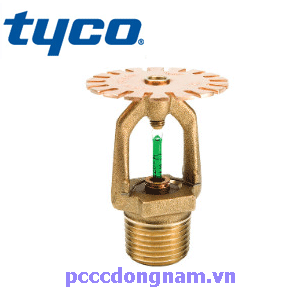

Tyco upright sprinkler nozzle TY3190
Models BB, SD, HIP, and AP Specific Application Sprinklers For Protecting Attics Special Form Meet UL, CU-L, Quick Response K Factor = 4.2 100% Reputation Quality Enthusiastic consultation Contact 0917911114 to get a quote for CO2 system
Tyco upright sprinkler sprinkler head TY3190 belongs to the special AP series of nozzles that must meet the standard with spray flow K=5.6. Designed for attic applications such as workshops
Technical information tyco sprinkler head up ty3190
- Meet standards: UL, C-UL
- Cost savings by reducing the number of nozzles and branch lines compared to systems using standard nozzles
- Must be installed in the upward direction with the orientation plate parallel to the roof
- To be used only in conjunction with other attic space sprinklers such as BB, SD, and HIP models to protect attic areas outside the scope of BB, SD and HIP nozzles. this. - Spray flow: 5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Minimum distance between nozzles: 7ft (2.1m) Trigger Temperature: 200°F (93°C)
- Outer coating material: Copper - Activated by glass tube
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
