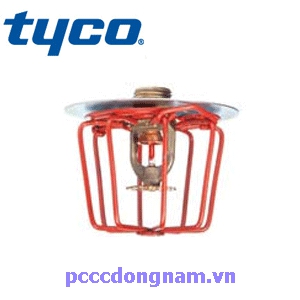

Tyco UK TY323 Sprinkler, UK Sprinkler
Tyco UK TY 323 nozzle with Pendent direction, long warranty, standard response, contact pcccdongnam.vn for a quote System MF200, CO2, Nitrogen, CO2 fire extinguisher, viking nozzle, Tyco UK
The Pendent facing Tyco UK TY323 nozzle belongs to the TY-FRB standard line of nozzles, with standard coverage with a spray coefficient of K=5.6. TY323 is designed to be suitable for use in typical normal and low-hazard environments such as banks, hotels, shopping centers, schools, hospitals, etc.
.gif "Đầu phun Tyco UK TY323")
Tyco UK ty323 . nozzle specification
- Meets standards: UL, C-UL, FM and LPCB.
- Working pressure: + 175 psi (12.1 bar) +250 psi (17.2 bar)
- Nozzle size: 1/2 inch NPT - Injection coefficient: K=5.6 GPM/psi½ (80.6 LPM/bar½).
- Plating material: Polyester, Chrome or brass.
- Trigger temperature (optional):
+ 135°F (57°C) Orange glass tube
+ 155°F (68°C) Red glass tube
+ 175°F (79°C) Yellow glass tube
+ 200°F (93°C) Green glass tube
+ 286°F (141°C) Blue glass tube
The nozzle is coated with an anti-corrosion coating to prolong its service life. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
