Tyco Uk Ty2189 Sprayer Head Upright, Fire Extinguisher Quotation Advice
Plating material: Brass, Plating Fast Response Spray Directional Pattern Flow K = 4.2 Technical advice Tyco UK Nozzles Designed for use in areas there is a risk of fire and explosion
The Tyco upward sprinkler sprinkler head TY2189 belongs to the CC2 family of quick-response sprinklers, designed for use in potentially explosive areas.

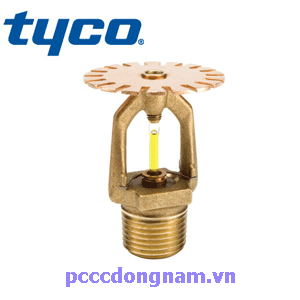

Tyco upright sprinkler sprinkler head TY2189
- Product line: CC2
- Spray flow: K=4.2
- Size of glass tube: 3mm
Descriptions
- To be installed on BlazeMaster CPVC piping, steel wet pipes or dry pipes in confined spaces and requires the use of automatic sprinklers.
- Can solve the problem of "on the ceiling" fire for both wet and dry piping systems.
- Activated by glass tube - Plating material: Brass, Cr
Specifications - Meet standards: UL,
- Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K=4.2 GPM/psi½ (60.5 LPM/bar½).
- Nozzle size: 1/2 inch NPT (DN15).
- Maximum coverage area 144 ft² (13.4 m²).
- Maximum distance between ends 12 ft (3.7 m)
- Trigger Temperature: 175 °F (79 °C)
You will receive a quote from us as soon as possible..
