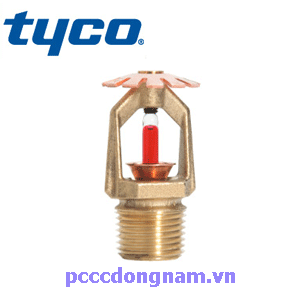

Tyco UK Sprinkler Vertical Ty4651
++ Special Nozzle +++ Standard Response +++ Standard Coverage ++ Spray flow K=5.6 Supply of various CO2 extinguishers
Tyco UK Sprinkler Vertical Ty4651 belongs to the TY-B series of standard spray and response type special nozzles with a flow rate of K=8.0. Designed to NFPA standards for use in normal and extreme explosion hazard environments.
Nozzle-Tyco-UK-Sprinkler-Upright-Ty4651
Technical details Tyco UK Sprinkler Vertical Ty4651
- Meet standards: UL, C-UL, LPCB, VS, NYC
- This type of nozzle can be installed in an up or down fashion, creating a spherical discharge pattern with 50% of the water flow upwards and 50% of the water flow downwards. The nozzle is coated with an anti-corrosion coating to prolong its service life. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K=8.0 GPM/psi½ (115.2 LPM/bar½).
- Nozzle size: 3/4 inch NPT (DN20).
- Activation temperature:
+ 135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue tinted glass tube
+ 360 °F (182 °C) pink colored glass tube
You will receive a quote from us as soon as possible..
