Tyco UK Fire Extinguishing Nozzle TY313
Product code TY-FRB, TY313 Temperature 57
°C 68
°C 79
°C 93
°C, Working pressure : 175 psi (12.1 bar)250 psi (17.2 bar), Tyco _UK, Warranty 12 nationwide month
The Tyco UK TY313 Fire Extinguisher Nozzle is a TYCO FR-FRB, 5.6 K, Upright (TY313) spray that is fast response, standard coverage, decorative 3mm bulb style nozzles designed to Use in light or normally dangerous, serving malls such as banks, hotels and shopping malls ping. Recessed version of the Sprinkler TY-FRB Series, used for areas with finished ceilings. This recessed sprinkler uses one of the following:
.gif "Đầu Phun Chữa Cháy Dập Lửa Tyco UK TY313")
• A 15-piece recessed Ecutcheon with a recessed adjustment up to 5/8 in. (15.9 mm) flush independent position
• Two-piece model 20 Concave Escutcheon with recessed adjustment grooves up to 1/2 in (12.7 mm) flush independent position. The adjustment provided by the recessed Ecutcheon reduces the accuracy with which the fixed pipe falling to the sprinkler must be cut. level versions of the Sprinklers TY-FRB Series are described in Technical Data Sheet TFP357.

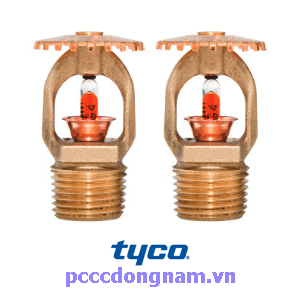

Đầu Phun Chữa Cháy Dập Lửa Tyco UK TY313
Specifications of Tyco UK Fire Extinguishing Spray Head TY313
+ KT spray hole 1/2″
- Thread Size : 1/2″ NPT
- K : 5.6 (80.6 LPM/bar½)
- Deflector : Turn Up (Upright)
- Temperature °C : 57°C 68°C 79°C 93°C - PN: 56-908-1-001
- Working pressure: 175 psi (12.1 bar) 250 psi (17.2 bar)
- Origin: UK
- Standard :
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
