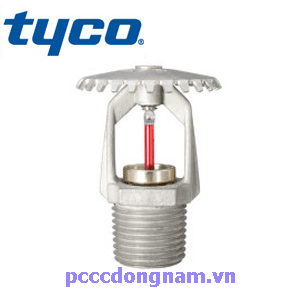

Tyco Ty8193 Sprinkler Head Upright
ABC powder trolley fire extinguisher price Tyco Ty8193 Upward Nozzle Standard Response Special nozzle style Supply TY8182, TY8282, TY8682, TY8382, TY8482, TY8183 Contact 0917911114 to receive a Viking nozzle quote Tyco
.gif "Tyco Ty8193 Nozzle Head Upright")
The Tyco Ty8193 Upright Nozzle belongs to the special TY-B Titanium series of standard nozzles with a flow rate of K=5.6, designed for use in corrosive environments.
Detailed technical description of the Tyco Ty8193 Uprght Sprayer head
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 5mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- They are made Titanium material which helps to prolong the service life compared to nozzles made of copper alloy. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
