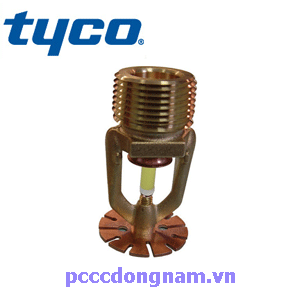

Tyco TY4246 Pendent Sprinkler Head,Flat Nozzle
1.++++ Flat Nozzle 2.++++++ Special Nozzle 3.++++++Special Reaction 4.++++++K=115 LPM/bar½ Guaranteed 100% genuine products + Genuine warranty + Good price + enthusiastic advice
Tyco Downward Sprinkler Head TY4246-The Flat Nozzle belongs to the TY-FS Special series of special nozzles, which respond specifically to the spray flow rate K=115 LPM/bar½. The TY4246 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and shelves in accordance with CEA 4001.
Nozzle-Sprinkler-Upright Direction-Tyco-TY4246
Description of Tyco TY4246 Upright Sprinkler Head-Flat Nozzle
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 115 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 4mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
You will receive a quote from us as soon as possible..
