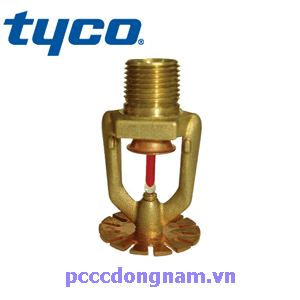

Tyco Ty4236 Pendent Sprinkler Head
Warehouse Nozzles ++ Special Spray Head Type Downward+++ Quick Response +++ Large Spray Flow K = 115 LPM/bar1/2 Contact pcccdongnam.vn for advice on Nitrogent fire fighting system : Hotline: 0917911114
Tyco Ty4236 Downward Sprinkler Head-Flat Nozzle belongs to the special TY-FRFS series of quick-response sprinklers with a spray flow rate of K=115 LPM/bar½. The TY4236 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and shelves in accordance with CEA 4001.
Nozzle-Sprinkler-Pendnet-Tyco-Ty4236
Tyco Ty4236 Downward Sprinkler Features-Flat Nozzle Meet the standard: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 115 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
