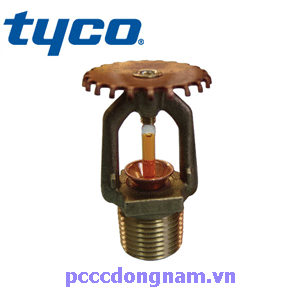

Tyco Ty4146 Upright Sprinkler
Nozzle Flow Factor K=115 LPM/bar½ Special nozzle TY-FS Special Nozzle size: 1/2 inch NPT (DN15). Glass tube size: 4mm Standard: VdS; CEA 4001; EN12845; LBCP
Tyco Ty4146 Upright Sprinkler- Flat Nozzle belongs to the TY-FS Special series of quick-response sprinklers with a spray flow rate of K=115 LPM/bar½. The TY4146 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and store shelves according to CEA 4001.
Nozzle-Sprinkler-Upright-Tyco-Ty4146
Description of Tyco Ty4146 Upright Sprinkler
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 115 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 4mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
