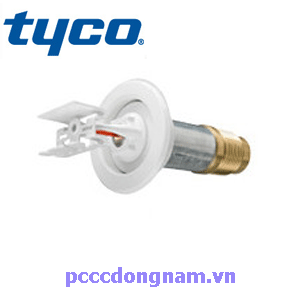

Tyco Ty2335 spray horizontal direction
Specifications Fire extinguishers CO2 MFZ4 MT3 MFZ8 How many kilograms ??? Quick response Spray flow factor K = 4.4 Meet UL standards, cu Commitment to 6 months warranty Contact 0917911114 Get a quote
Tyco Ty2335 spray horizontal direction injector horizontal direction belongs to the spray head line LFII type fast response to spray flow k = 4.4. Designed for use for residential areas such as houses, apartments, dormitories, hotels ...
Tyco Ty2335 injector head specifications
- Nozzles applied to fire fighting systems:
+ Dry and wet residential sprayer system for fixed housing has one or two apartments and mobile homes according to NFPA 13D standards.
+ Dry and wet residential sprayer system for housing facilities up to four floors according to NFPA 13R standards.
+ Dry and wet injection system for a part of residential areas according to NFPA 13 standards. - Meeting: UL and NSF / ANSI 61. - Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K = 4.4 GPM / Psi½ (63.4 LPM / BART).
- Size of nozzle: 1 inch NPT (DN25).
- Activated temperature: 155 ° F (68 ° C) red glass tube.
- There are high heat sensitivity and water distribution characteristics are specially designed to control fire and increase the ability of residents evacuation.
- There is an appropriate shutter lid for the structural ceiling works, using a stylish 20-layer capture cap. Adjusting the gap is 12.7 mm (reducing the accuracy of the nozzle length When installed).
- Plating material: Natural copper, Signal White, Chrome Plated.
You will receive a quote from us as soon as possible..
