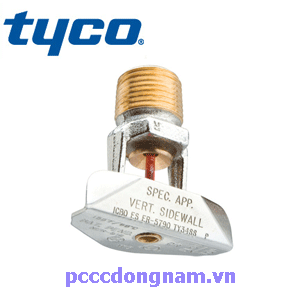

Tyco Ty 3488 Vertical Pendent Sprinkler Head
(Updated) Price list of Ho Chi Minh City Fire Prevention and Fighting Quick Response Extinguishing outdoor fire as an open nozzle, anti-contact fire K flow = 5.6 FM200 system distribution 0917911114 24/7 technical advice
The Tyco Ty 3488 Vertical Downward Sprinkler is a fast response type WS product designed to provide moisture and protection for glass or ceramic applications in construction.
Tyco Ty 3488 . Vertical Pendent Sprinkler
+ Can be used for outdoor fire fighting as an open nozzle, against contact fire
- Material of outer coating: Copper, polyester, Cr
- Activated by glass tube
Description of Tyco Ty 3488 . Vertical Pendent Sprinkler Head
- Scope of use:
+ Protect window applications for buildings or buildings
+ Can be used for outdoor fire fighting as an open nozzle, against contact fire
- Material of outer coating: Copper, polyester, Cr
- Activated by glass tube
Specifications of Tyco Ty 3488 . Vertical Pendent Sprinkler Head
- Meets standards: UL, C-UL, NFPA and NYC
- Injection coefficient: 5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Maximum distance between nozzles: 8ft (2.44m)
- Minimum distance between nozzles: 6ft (1.83m)
- Activation temperature:
+ 155°F (68°C)
+ 200°F (93°C)
You will receive a quote from us as soon as possible..
