Tyco Sprinkler Upright Ty2199
Quick response CC3 special nozzle K = 4.2 NFPA13 standard FM200 fire suppression system distribution CO2 system distribution and installation Customer consultation hotline 0917911114 serves 24/7 service

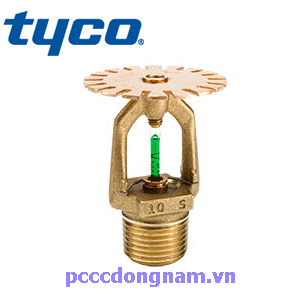

.gif "Đầu Phun Sprinkler Tyco Hướng Lên Ty2199")
The Tyco upward sprinkler sprinkler TY2199 belongs to the CC3 special series of quick-response sprinklers with spray flow K=4.2. The TY2199 nozzle is designed for the protection of potentially explosive areas, has confined spaces, meets NFPA13 standards.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray flow: K=4.2 GPM/psi½ (60.5 LPM/bar½).
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Maximum coverage area 196 ft² (18.2 m²).
- Maximum distance between ends 14 ft (4.3 m) Trigger Temperature: 200°F (93°C)
- The TY2199 nozzle is installed on BlazeMaster CPVC pipe, steel wet pipe or dry pipe in a confined space and requires the use of an automatic nozzle. - Plating material: copper
You will receive a quote from us as soon as possible..
