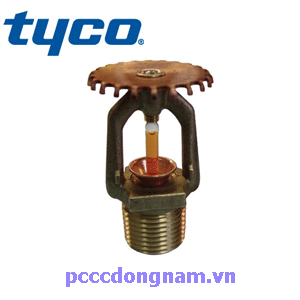

Tyco Sprinkler Upright TY1156 Tyco UK
Warehouse Head Special Reaction Special Nozzle K=80 LPM/bar½ Contact 0917911114
The Tyco Upward Sprinkler TY1156 belongs to the TY-FS series of standard response type special nozzles with a flow rate of K=57 LPM/bar½. The TY1156s are designed to be flush with standard nozzles, allowing them to be used with lower clearances above open ceilings and shelves in accordance with CEA 4001.
Nozzle-Tyco-Sprinkler-Mount-Up-TY1156
Description Tyco Sprinkler Head Up TY1156
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 57 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
- Plating material: copper
You will receive a quote from us as soon as possible..
