Tyco Pendent Sprinkler ty3251
TY3251, Standard Response, K = 5.6 GPM/psi½ (80.6 LPM/bar½), Genuine Import, Distributing MF200, vk100, vk102,vk104, vk200, vk 536, vk530, MF200, CO2

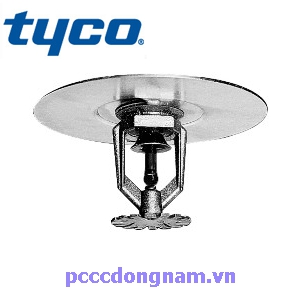

Tyco Pendent sprinkler sprinkler head TY3251 belongs to the TY-B series of standard reactive sprinklers with spray coefficient K 5.6. Used in Tyco sprinkler systems intended for storage. It is also used in below-floor firefighting applications.
.gif "Đầu Phun Sprinkler Tyco Hướng Xuống ty3251")
Specifications of Tyco Downside Sprinkler Head Ty3251
- Criteria to meet:
+ UL and C-UL
+ FM and NYC
- Maximum working pressure: 175 psi (12.1 bar)
- Injection coefficient: K=5.6 gpm/psi½ (80.6 lpm/bar½)
- 1/2 inch type nozzle size 5mm trigger glass tube.
Activation temperature:
+ 135°F (57°C) orange colored glass tube
+ 155°F (68°C) red colored glass tube
+ 175°F (79°C) yellow colored glass tube
+ 200°F (93°C) green colored glass tube
+ 286°F (141°C) blue colored glass tube
+ 360°F (182°C) pink-gray colored glass tube
- Designed with a shield to protect the trigger element by the impact of water spray the higher nozzles to avoid premature activation in the event of a fire.
- Depending on environmental conditions, the nozzles are coated with an anti-corrosion coating to prolong the service life.
