Tyco Pendent sprinkler sprinkler TY6236
Error SWITCH IS NOT position Chungmei Fire Alarm ACCUMULATION Indicator LAMP UL and C-UL ListedFM Approved, 14.0 K-factor, Pendent Sprinklers Early Suppression, Fast Response , Model ESFR-14 , TY6236

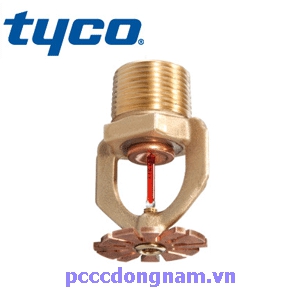

Tyco pendent sprinkler sprinkler head TY6236 belongs to the ESFR-14 series of quick response sprinklers with K 14.0 spray flow. The TY6236 sprinkler is specially designed for in-rack sprinklers and large storage areas.
Basic specifications tyco sprinkler head downward ty6236
Qualified: UL, C-UL, FM
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=14.0 GPM/psi½ (201.6 LPM/bar½).
- Nozzle size: 3/4 inch NPT.
- Maximum distance between nozzles: 12ft (3.7m)
- Minimum distance between nozzles: 8ft (2.4m)
- Activation temperature
+ 155 °F (68 °C) Red glass tube
+ 200 °F (93 °C) Green glass tube
- TY6236 Only for wet piping system
- Maximum coverage area: 100 ft² (9.3 m²)
- Minimum area covered: 64 ft² (5.8 m²).
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
