Tyco Pendent sprinkler sprinkler TY5211
Southeast Sells all types of Tyco Sprinkler Nozzles Standard Sensitivity - Standard Response TY-5111, TY5211 and TY5811 sell fire alarm center for sale...

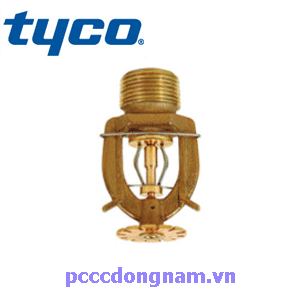

Tyco downward sprinkler sprinkler head TY5211 belongs to the standard ELO-231 series of reactive sprinklers, has standard coverage with a spray flow K 11.2. The TY5211 nozzle has a large spray volume, so it is suitable for use in warehouses with high shelves.
Đầu-phun-sprinkler-Tyco-hướng-xuống-TY5211
Tyco Pendent nozzle specifications TY5211
- Meets standards: UL, C-UL, FM and NYC
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=11.2 GPM/psi½ (161.3 LPM/bar½).
- Nozzle size: 3/4 inch NPT (DN20)
- Activation temperature
+ 165°F (74°C) unpainted frame
+ 212 °F (100 °C) white painted frame
+ 286 °F (141 °C) blue painted frame
- TY5211 with higher flow at low pressure qualifies to replace 5.6 or 8.0 K factor injectors
- The nozzle is covered with wax or a lead plated layer to help prolong the life of the copper alloy components in the nozzle to avoid corrosion when exposed to the environment
. - Can install additional protection frame “WSG-2 Guard & Shield”
