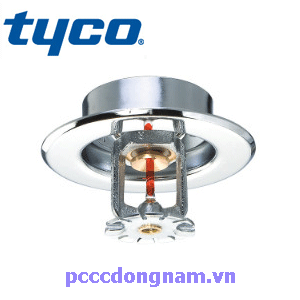

Tyco Pendent Sprinkler Head Ty3232
Tyco company, Made in England, 12 months warranty, Ty3232 reacts to EC-5 wide coverage standards, flow K 5.6, Imported in bulk, quantity discount..contact now 0917911114 to order
The Tyco Downward Sprinkler TY3232 belongs to the standard response type EC-5 wide-coverage sprinkler with a flow rate of K=5.6. They are designed for use in low or general hazardous environments. In addition, TY3232 is also used in automatic sprinkler fire extinguishing systems according to installation standards NFPA 13.
TY3232 . Downward Sprinkler Nozzle Specifications - Meets standards: UL, C-UL, FM and NYC.
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=5.6 GPM/psi½ (80.6 LPM/bar½).
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+ 135 °F (57 °C) Orange glass tube
+ 155 °F (68 °C) Red glass tube
- The maximum coverage area is up to 37.2 m², larger than the specified 12.1 m2 in normal hazardous environments and 20.6 m2 in mildly hazardous environments.
- Comes with a cover suitable for areas with finished ceilings, using the Style 50 double hood.
- Has a protective coating to prolong the life of the nozzle when using the nozzle in corrosive environments.
- Plating material: Brass, Cr.
You will receive a quote from us as soon as possible..
