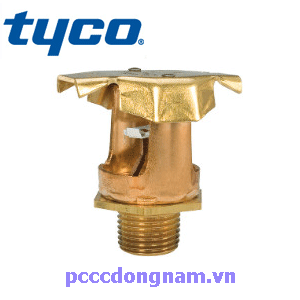

Tyco omnidirectional sprinkler TY4180
Special tyco sprinkler head BB Quick response type Spray flow K = 8 Standards Meet UL, C-UL . Contact 0917911114 K=8.0 GPM/psi½ (115.5 LPM/bar½)
Tyco omnidirectional sprinkler head TY4180 belongs to the special BB1 series of quick-response sprinklers with spray flow K=8.0. They are specifically designed for attic applications such as workshops, providing cost savings by reducing the number of nozzles and branch lines compared to systems using standard nozzles.
Technical characteristics of tyco omnidirectional sprinkler head TY4180
- Meet standards: UL, C-UL
- Spray flow: K=8.0 GPM/psi½ (115.5 LPM/bar½)
- Nozzle size: 3/4 inch NPT (DN20).
- Size of glass tube: 3mm - Minimum distance between nozzles: 4 ft (1.2 m)
- Maximum distance between nozzles: 6ft (1.8m) Trigger Temperature: 200°F (93°C) BB1 TY4180 nozzle consists of 2 narrow directional plates long on both sides with the aim: reaction time is reduced with the arrangement of nozzles no more than 6 ft (1.8 m) and can focus spray in two directions with each horizontally oriented up to 30 ft (9.1 m).
- Not only used in anti-cutting wall or attic space partition, TY4180 is also used oriented plate parallel to the outer wall in the attic side, roof. - Nozzle TY4180 (BB1) used with attic slope, roof 10:12 (83%) to 12:12 (100%) This type of nozzle has a brass finish and is activated by a glass tube.
