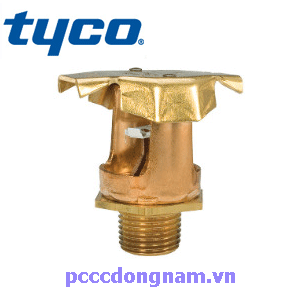

Tyco Omnidirectional Sprinkler TY2180
Special form Models BB, SD, HIP, and APSpecific Application SprinklersFor Protecting Attics Meet UL, CU-L, Fast Response K Factor = 4.2 100% Reputation Quality Consulting Enthusiastic Contact 0917911114 to receive a quote on the FM200 system
The Tyco omnidirectional Sprinkler Head TY2180 belongs to the special BB1 series of quick-response sprinklers with a spray flow rate of K=4.2. They are specifically designed for attic applications such as workshops, providing cost savings by reducing the number of nozzles and branch lines compared to a standard sprinkler system.
Technical characteristics of Tyco omnidirectional sprinkler head TY2180
- Meet standards: UL, C-UL
- Spray flow: K=4.2 GPM/psi½ (60.5 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Minimum distance between nozzles: 4 ft (1.2 m)
- Maximum distance between nozzles: 6ft (1.8m) Trigger
Temperature: 200°F (93°C) The BB1 TY2180 injector consists of two narrow directional plates long on either side with the aim: reaction time is reduced with the placement of nozzles no more than 6 ft (1.8 m) and spray can be focused in either direction with each nozzle. horizontally oriented up to 30 ft (9.1 m).
- TY2180 is used in shear walls or attic space dividers. In addition, they are also used oriented panels parallel to the outer wall in the attic hip area, roof.
- Nozzle TY2180 (BB1) used with attic slope, roof 10:12 (83%) to 12:12 (100%) This type of nozzle has a brass finish and is activated by a glass tube.
