Tyco Nozzles TY1121 TY1221 TY3121 TY3221 TY4121 TY4221
TY1121, TY1221, TY3121, TY3221, TY4121, TY4221, Code TY-FRL, K-factor 2.8 5.6, Temperature 165-212, TYco Company, Made in England, 12 months warranty, Contact pcccdongnam.vn to get a quote immediately viking sprinkler head
Tyco UK sprinklers TY1121, TY1221, TY3121, TY3221, TY4121, TY4221 (TYCO Series TY-FRL, 2.8, 5.6 and 8.0 K-Sp, Upright and Prink Sprinklers) are standard quick-response, weldable nozzles. designed for use in normally and lightly hazardous commercial industries such as banks, hotels, shopping malls, schools, hospitals, etc...
Nozzle-Tyco-TY1121-TY1221-TY3121-TY3221-TY4121-TY4221
Concave versions of the 2.8 and 5.6 K coefficients, the TY-FRL Prin Sprin-kler Series, are also used for areas with finished ceilings. It uses a 20 (1/2 in. NPT) concave Ecutcheon. The Recutch Ecutcheon offers 1/4 in (6.4 mm) of recessed adjustment or up to 1/2 in (12.7 mm) total adjustment the independent flush position.
The adjustment provided by Recutch Ecutcheon reduces the precision with which the fixed pipe falling to the sprinklers must be cut. Intermediate versions of the 5.6 and 8.0 K, the TY-FRL Series Sprinkler can be obtained by using the TY -FRL Prink Sprinkler Series in combination with the Model S4 Shield.

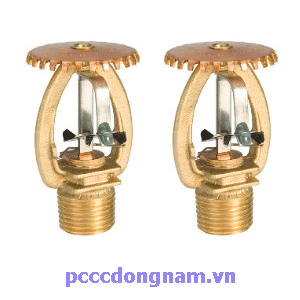

.gif "Đầu Phun Tyco TY1121 TY1221 TY3121 TY3221 TY4121 TY4221")
Đầu-Phun-Tyco-TY1121-TY1221-TY3121-TY3221-TY4121-TY4221
T Y1121. . . . . . . . . . .Upright 2 .8K, 1/2 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). - Nozzle size: 1/2 inch NPT. - Injection coefficient: K = 2.8 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
TY1221. . . . . . . . . . .Penden 2 .8K, 1/2 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). - Nozzle size: 1/2 inch NPT. - Injection coefficient: K = 2.8 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
TY3121. . . . . . . . . . .Upright 5 .6K, 1/2 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). - Nozzle size: 1/2 inch NPT. - Injection coefficient: K = 5.6 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
TY3221. . . . . . . . . . .Penden 5 .6K, 1/2 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). - Nozzle size: 1/2 inch NPT. - Injection coefficient: K = 5.6 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
TY4121. . . . . . . . . . .Upright 8 .0K, 3/4 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). Nozzle size: 3/4 inch NPT. - Injection coefficient: K = 8.0 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
TY4221. . . . . . . . . . .Penden 8 .0K, 3/4 in. NPT
- Meets standards: UL, C-UL, FM and LPCB. - Maximum working pressure: 175 psi (12.1 bar). Nozzle size: 3/4 inch NPT. - Injection coefficient: K = 8.0 GPM/psi½ (80.6 LPM/bar½). - Plating material: Chrome or brass. - Operating temperature (optional): + 165°F (74°C) Unpainted fixing plate. + 212°F (100°C) White painted fixing plate.
Dowload Data Sheets
1.Sprinkler Tyco>>Tại đây
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
