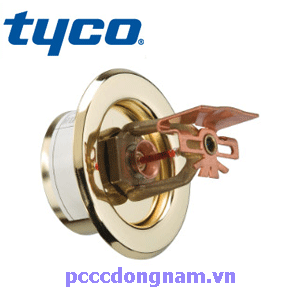

TYCO injectors across the wall edge
Sprinkler Sprinkler Tyco Protector dropped price K = 5.6 68oC- PS002 horizontal directional direction wall Quick response Inkjet flow factor K = 4.2 GPM / Psi½ (60.5 LPM / BAR½) National Warranty Contact 0917911114 Buy now
TY1334-Tyco nozzle horizontal direction of the wall edge of the flow of residential area LFII type fast response to spray flow k = 4.2. Nozzles are designed for use for residential areas such as houses, apartments, dormitories, hotels ...
TYCO TYCO TYCO TECHNICAL INFORMATION Horizontal wall edge
- Nozzles applied to fire fighting systems:
+ Dry and wet residential sprayer system for fixed housing has one or two apartments and mobile homes according to NFPA 13D standards.
+ Dry and wet residential sprayer system for housing facilities up to four floors according to NFPA 13R standards.
+ Dry and wet injection system for a part of residential areas according to NFPA 13 standards.
- Meeting: UL, C-UL, NSF / ANSI 61 and NYC.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray coefficient: K = 4.2 GPM / Psi½ (60.5 LPM / BART).
- Size of nozzle: 1/2 inch NPT (DN15).
- Activation temperature:
+ 155 ° F (68 ° C) Red glass tube
+ 175 ° F (79 ° C) Yellow glass tube
- There are high heat sensitivity and water distribution characteristics are specially designed to control fire and increase the ability of residents evacuation.
- There is an appropriate shutter lid for the work with a complete ceiling, using a stylish 20-layer capture cap. The caps are adjusted to 6.4 mm or 12.7 mm (reducing the accuracy of the length of the tube length Spray must cut when installed).
- Plating material: natural co, pure white, signal white, chrome plated.
1.Sprinkler Tyco>>Tại đây
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
