Tyco Horizontal Sprinkler Ty3302
User manual for addressable fire alarm center Horing QA16 Fire alarm cabinet QA16 TY3302, Injector TYco3302, K Factor 5.6, Quick response Contact to buy TY3551, TY315, TY325

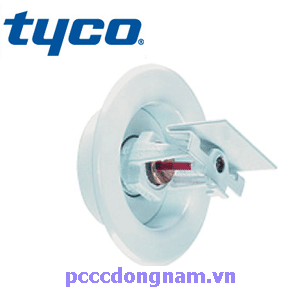

The TY3302 Horizontal Tyco Sprinkler Head is part of the EC-5 wide-coverage sprinkler, which is quick to respond with a flow rate of K=5.6. They are designed to be used in buildings such as churches, sitting areas in restaurants, hotels, educational institutions, offices, etc., or as an alternative to downward or upward nozzles for aesthetics or in schools. In case of a building structure, it is not possible to go through the pipeline on the ceiling.
Technical information about T3302 . Horizontal Sprinkler Head
- Meets standards: UL, C-UL, FM and NYC.
- Maximum working pressure: 12.1 bar.
- Injection coefficient: 5.6 GPM/psi½ (80.6 LPM/bar½).
- Nozzle size: 1/2 inch NPT (DN15).
- Activation temperature:
+ 135°F (57°C) orange glass tube
+ 155°F (68°C) red glass tube
+ 200°F (93°C) green glass tube
- Maximum coverage area up to 35.7 m².
- Designed with a style 50 double-layer hood.
- Material of outer coating: Copper, Cr.
You will receive a quote from us as soon as possible..
