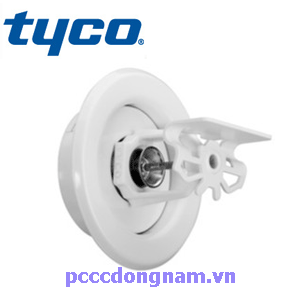

– The Tyco EC-HS-80 nozzle is a horizontal type of fire sprinkler
– Model: EC-HS-80(TY3330) 80 1/2” NPT
– The operating temperature depends on the color, but each nozzle has different operating temperatures (57 0C orange), (680C red), (79 0C yellow).
Model EC-HS, 80 K-Factor, Sprinklers Horizontal wall with expanded response, decorative water spray with 3mm glass bulb. The TYCO EC-HS-80 fire sprinkler head must be installed in accordance with VdS CEA 4001 under a fine ceiling in normal light or hazard 1, in accordance with annex E of VdS CEA 4001 (e.g. commercial occupations such as homes). churches, seating areas of restaurants, hotels, educational institutions, offices, etc.) TYCO EC-HS-80 fire sprinkler heads with coverage up to 21 m2, they are designed for installation along a wall or side of a beam and directly below a flat and flat ceiling. Horizontal sprinklers are often used instead of standalone or vertical sprinklers due to aesthetic or building construction considerations, where piping in the ceiling is undesirable. Concave version of EC-HS 10 Horizontal Expansion Irrigation Model Concave Escutcheon with 13 mm recessed adjustment or up to 19 mm adjustable flat side wall position, or two-piece concave Escutcheon with 6 mm recessed adjustment or total adjustment up to 13 mm flat side wall position. The adjustment provided by the recessed Ecutcheon reduces the accuracy that the fixed pipe length to the sprinklers should be cu.
