Tyco ceiling sprinkler TY5522
Instructions for using Horing QA16 fire alarm center Ceiling Tyco Sprinkler Head TY5522-distributing FM200 fire suppression system, Viking sprinkler quote, CO2 fire suppression system, ..

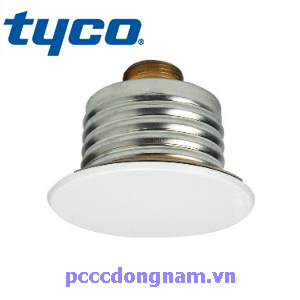

The Tyco TY5522 downward-facing Sprinkler is part of the fast-response ELOC wide-coverage sprinkler with a spray flow rate of K=11.2. Designed for use in environments with low fire and explosion risk, buildings requiring high aesthetics such as hotels, office buildings, churches, restaurants, etc.
Parameters of ceiling sprinkler sprinkler Tyco Ty5522
- Meet standards: UL, C-UL.
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=11.2 GPM/psi½ (161.3 LPM/bar½).
- Nozzle size: 3/4 inch NPT (DN20).
- Maximum coverage area up to 30 m.
- Activation temperature:
+ 160°F (71°C) for use with a cover with an activation temperature of 139°F (59°C)
+ 212°F (100°C) for use with a cover with an activation temperature of 165°F (74°C)
You will receive a quote from us as soon as possible..
