Tyco 2182 Multidirectional Sprinkler
Models BB, SD, HIP, and APSpecific Application SprinklersFor Protecting Attics Đáp ứng chuẩn UL, CU-L, Phản ứng Nhanh Hệ số K = 4.2 100% Uy Tín Chất Lượng Tư vấn nhiệt tình Liên hệ 0917911114 nhận báo giá hệ thống FM200

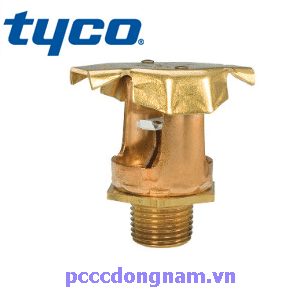

Tyco multidirectional sprinkler head TY2182 belongs to the BB3 special sprinkler line, fast response type with spray flow K=4.2. The TY2182 is a special nozzle for attic applications such as workshops, helping to save costs by reducing the number of nozzles and branch pipes compared to systems using standard nozzles.
Technical specifications Tyco multi-directional sprinkler head TY2182
- Meets standards: UL, C-UL
- Injection flow: K=4.2 GPM/psi½ (60.5 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 3mm
- Minimum distance between nozzles: 4 ft (1.2 m)
- Maximum distance between nozzles: 6ft (1.8m)
- Activation temperature: 200°F (93°C)
- The BB3 TY2182 spray nozzle consists of 2 long narrow directional plates on both sides for the purpose: reaction time is reduced with the placement of nozzles no more than 6 ft (1.8 m) and can concentrate spraying in two directions with each horizontal direction up to 30 ft (9.1 m).
- TY2182 is used in shear walls or screens separating attic spaces. They are also used with panels oriented parallel to the exterior walls in the attic and roof side areas.
- TY2182 (BB3) nozzle for use with attic and roof slopes 3:12 (25%) to 7:12 (58%)
- This type of nozzle has a brass coating and is activated by a glass tube.
You will receive a quote from us as soon as possible..
