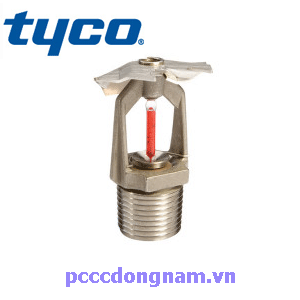

Ty8493,Sprinkler tyco quick response vertical close to the wall
Price Specifications Sprinkler Heads Tyco Ty325 - Standard Reaction Down Nozzles Ty8493 - Reactive Nozzles UL,C-UL and LPCB Standards are special nozzle series TY-B Factor k = 5.6 100% Genuine goods 12 months warranty Call now 0917911114 we would like to answer all your questions!!!!! Free Consultation
Ty8493-Sprinkler tyco vertical fast response wall-to-wall spray head belongs to the special TY-B Titanium series of standard nozzles with a flow rate of K=5.6, designed for use in corrosive environments.
Technical details Ty8493-Sprinkler tyco fast response vertical close to the wall
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 5mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- This type of nozzle is installed along the wall, can be installed in an upward or downward fashion, creating a spherical discharge pattern with 50% upward water flow and 50% directional water flow. down and is activated by the glass tube.
- When installing the nozzle facing down, it will be used with the Style 10 . double cap - They are made Titanium material which helps to prolong the service life compared to nozzles made of copper alloy. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
