Ty8491 vertical nozzle close to the wall
35kg BC MFTZ35 powder fire extinguisher (large tank with trolley)TY1121, TY1221, TY3121, TY3221, TY4121, TY4221 standard response special nozzles TY8491 TY-B series of standard reactive special nozzles Southeast provides large quantities according to order requirements Technical advice and online support 0917911114 Customers 24/7 Commitment to the right price Commitment to 12 months warranty Commitment to free nationwide delivery
Standard response nozzles TY1121, TY1221, TY3121, TY3221, TY4121, TY4221 : Hotline 0917911114 - Dong Nam pccc company

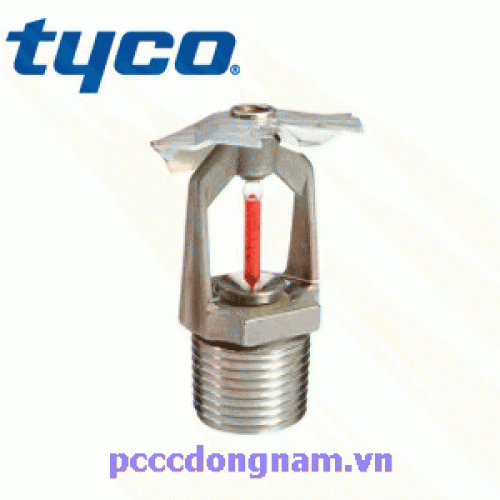

Ty8491-the wall-mounted vertical spray head belongs to the TY-B Stainless Steel special nozzle series, which has to meet the standard with a spray flow rate of K=5.6. The TY8491 is a special nozzle for use in corrosive environments.
Technical details Ty8491-wall-mounted vertical spray head
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 5mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- This type of nozzle is installed along the wall, can be installed in an upward or downward fashion, creating a spherical discharge pattern with 50% upward water flow and 50% directional water flow. down and is activated by the glass tube.
- When installing the nozzle facing down, it will be used with the Style 10 . double cap
- They are made stainless steel material which prolongs the service life compared to copper alloy nozzles. However, this does not mean that this nozzle is suitable Suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
1.Sprinkler Tyco>>Here
You will receive a quote from us as soon as possible..
