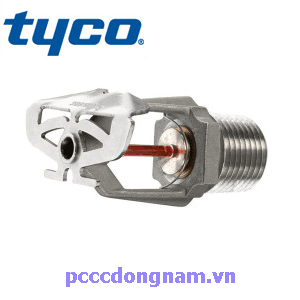

Ty8391 Sprinkler head tyco Horizontal
Dong Nam Company provides tyco sprinkler heads: TY7229,TY3551,TY3151,TY3251,TY3535,TY3555,TY325 Special nozzle TY-B Steel Standard response Quality goods Price 100% prestige
Dong Nam Company provides tyco sprinkler heads: TY7229, TY3551, TY3151, TY3251, TY3535, TY3555, TY325 Ty8391-head sprinkler tyco Horizontal direction of the special nozzle TY-B Stainless Steel type must meet the standard with spray flow K=5.6. The TY8391 is a special nozzle for use in corrosive environments.
Technical details Ty8391-head sprinkler tyco Horizontal direction
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 5mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- This type of nozzle is designed to be installed along the wall as an alternative to the up or down nozzle, used with Style 10 double caps and activated by glass tube. - They are made stainless steel material which prolongs the service life compared to copper alloy nozzles. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
