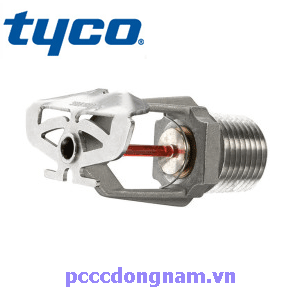

Ty8383,Special tyco sprinkler head with horizontal spray direction
TY315 315 Downward Sprinkler Price 1/2 inch NPT Nozzle Size Quick Response Model TY-FRB TiTanium Special Nozzle Tyco Sprinkler Head Distribution - Prestige - Quality - 12 Months Full Warranty country
Ty8383-Special tyco sprinkler horizontal spray nozzles belong to the special TY-FRB Titanium series of quick response nozzles with a spray flow rate of K=5.6, designed for use in corrosive environments.
Technical details Ty8383-Special tyco sprinkler head with horizontal spray direction
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube This type of nozzle is designed to be installed along the wall as an alternative to up or down nozzles, comes with a Style 10 double cap and is activated by a glass tube.
- They are made Titanium material which helps to prolong the service life compared to nozzles made of copper alloy. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
