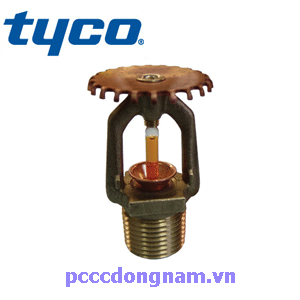

TY4156, Tyco Upright Sprinkler Head Up
Sprinkler head rack facing upward Standard: VdS; CEA 4001; EN12845; LBCP 100% TY-FS special nozzle Quick response K flow = 115 LPM/bar1/2
TY4156 Tyco Upward Flat Sprinkler Head belongs to the special TY-FS series of quick-response nozzles with a spray flow rate of K=115 LPM/bar½. The Y4156 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and store shelves in accordance with CEA 4001.
TY4156-Injector-Tyco-Sprinkler-Flat-Direction-Up
Technical Description TY4156 Upward Flat Tyco Sprinkler Head
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 115 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 5mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions
You will receive a quote from us as soon as possible..
