TY3256,Pendent Sprinkler TYco UK
K=80 LPM/bar½ TY TY-FS Special Nozzle Standard Response Maximum working pressure: 175 psi (12.1 bar) Sprinkler system installation consultation
TY3256-Downward Sprinkler TYco UK belongs to the TY-FS family of standard response type special nozzles with a spray flow rate of K=80 LPM/bar½. The TY3256 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and shelves in accordance with CEA 4001

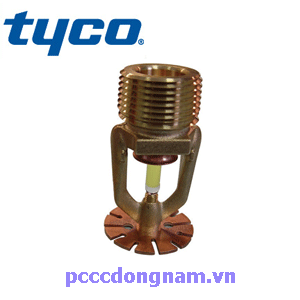

TY3256-nozzle-Sprinkler-Pendent-TYco-UK
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 80 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Glass tube size: 5mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
- Plating material: copper
