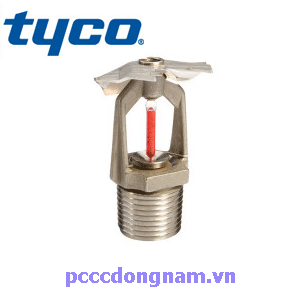

TY325, Vertical tyco sprinkler TY8693
Price How to use fire extinguisher MT35 ty325 Ty8693 Standard Reaction K=5.6 Use for anti-corrosion environment Special nozzle TY-B TiTanium Guarantee 100% genuine Level 1 agent price 12 months warranty Call now 0917911114 to answer all technical questions!!
Tyco vertical sprinkler sprinkler TY8693 belongs to the TY-B Titanium special nozzle series, which has to meet the standards with a spray flow rate of K=5.6, designed for use in corrosive environments.
Detailed description of Tyco vertical sprinkler head TY8693
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 5mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- This type of nozzle can be installed in an up or down fashion, creating a spherical discharge pattern with 50% upward and 50% downward water flow and is activated by a hydraulic hose. pure.
- When installing the nozzle facing down, it will be used with the Style 10 . double cap
- They are made Titanium material which helps to prolong the service life compared to nozzles made of copper alloy. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
