TRIGGER NOZZLE AUTOMATIC REGULAR SIZE Yooksong
Automatic pressure control is possible during high-pressure waterproofing with a built-in pressure control spring inside the tube window, and instantaneous flow control and A powerful pulsing function is available.
Since the lever is not mounted on the top and it is a pistol type, it has a great effect in correcting posture when waterproofing, and the locking function sets the waterproof mode. It can be fixed for continuous waterproofing. It supports 2 Pulsing mode, Protection mode and Flush mode.
.png "TRIGGER NOZZLE AUTOMATIC REGULAR SIZE")
| removable | fire truck |
Tube mounting example |
1. Automatic metering form injection function
Between the conventional venturi-type proportioner (inductor) and the traditional automatic system ideal compromise Quantitative foam extinguishing agent mixing is possible while applying a wide range of flow rates. No Electric power: No power required Low maintenance cost due to simple mechanical installation
2. Large range to use

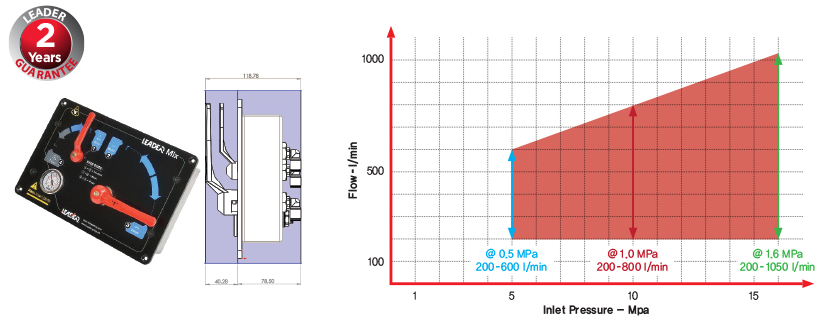

Can replace 3 conventional inductors (200, 400 and 800 (L/min)) Wide range of usable flow rates 200 to 1050 L/min Wide working pressure range 0.5 to 1.6 MPa Weighing precision meets EN16712 standard
3. Minimization of injection amount of fire extinguishing agent Accurate weighing of fire extinguishing agent is possible 0.3 % to 6 % Automatically applied in response to selected flow rate the nozzle
4. Foam extinguishing agent mixing function available at any time and in any situation Instantaneous fire extinguishing agent injection possible even in pulsing mode Chemical mixing possible even at low pressures of 1.0 MPa or less Highly independent mixing even with nozzle flow changes
5. Two versions available For fire engines (pump trucks, etc.) Removable (a person can move and operate it directly)
6. Technical Characteristic
|
Leader Mix 200 - 1000 |
Portable version | Vehicle version |
| product standard | I40.90.100 | I40.90.102 |
| usable flow | 200 to 1050 l/min | 200 to 1050 l/min |
| usable pressure | 0.5 ~ 1.6 MPa | 0.5 ~ 1.6 MPa |
| Powder mixing ratio | 0.3%, 0.5%, 1%, 3%, 6% | 0.3%, 0.5%, 1%, 3%, 6% |
| connector type | Swive coupling (FE) | Swive coupling (FE) |
| Connection screw size | FE 65 (Female and Male) | FE 65 (Female and Male) |
| storage temperature | -20°C to +60°C | -20°C to +60°C |
| usable temperature | Above freezing to +50°C | Above freezing to +50°C |
| pressure loss rate | 35% | 35% |
| Equipped with pressure gauge | Yes | Yes |
| weight | 14 kg | 13 kg |
| size | 486 x 237 x 274 mm | 486 x 215 x 274 mm |
| carrying handle | Yes | No |
| Pick-up hose | Suction hose equipped with a pick up tube - L2.5m / 1″D Storz | No |
| Pick-up hose specification | D Storz quick connection | 1″ BSP female |
| non-return valve | Yes | Yes |
| auto drain button | Yes | No |
.png "TRIGGER NOZZLE AUTOMATIC REGULAR SIZE")
OPTIONS
remote control controller ref. I40.90.300
• LEADER MIX internal pressure can be checked
• Water or Foam mode conversion possible
• Automatic drainage operation possible
• 30X20X8 (cm) small size for easy attachment to fire trucks
• Very easy to connect with LEADER MIX
Hose for connection to the remote control controller ref. 2009117
• Air operated 8 mm hose
• Maximum working pressure of 2.2 MPa
• Color: Black
• A total of 6 hoses are connected when connecting the controller and LEADER MIX
