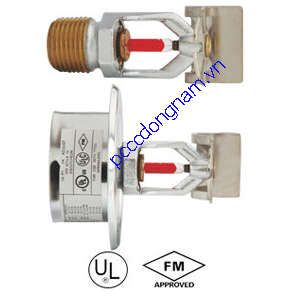

TPMC horizontal sprinkler head
Sidewall sprinkler (Standard response) is a standard TPMC horizontal spray head that is imported TPMCSTEEL - China and meets quality standards for fire protection. Best price only in Southeast. For more information, please contact 0917911114
Standard TPMC horizontal sprinkler nozzles are used at the end of the road, side of the wall, connecting road, small corridor or small room used for fire protection system.
TPMC offers horizontal sprinkler systems in UL listed/FM approved.
Standard reactive horizontal sprinkler nozzles are designed with a 5 mm glass bulb mounted along a wall or under a beam, in both horizontal and vertical types. It has a shape deflector in half, so water comes out the shot hole on one side.
Technical details of standard horizontal sprinkler sprinklers
- Sidewall sprinkler (Standard response)
Certifications: UL Listed / FM Approved
Standard: ANSI/UL 199
Response: Standard with 5 mm . glass bulb
Ecutcheon: Concave Ecutcheon
Subject: NPT / BSPT
W. Pressure: 175 psi (1.21 MPa)
Finish: Raw brass / chrome plated / white

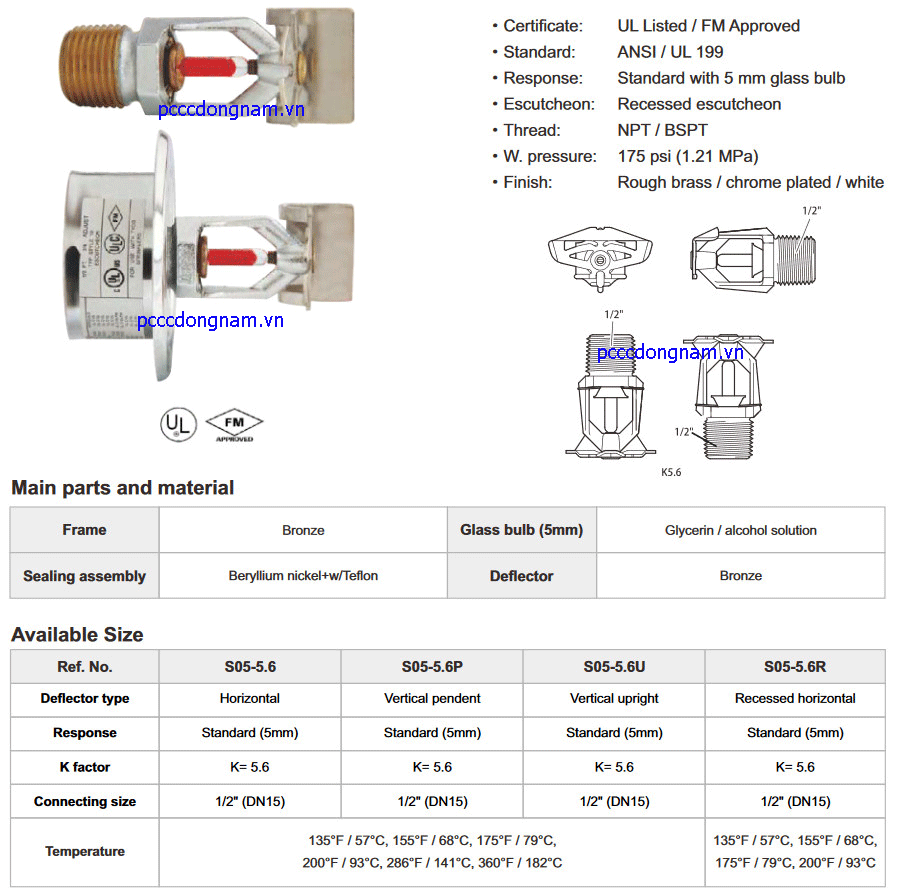

Catalog of standard horizontal sprinkler nozzles
- Sidewall sprinkler (Standard response)
You will receive a quote from us as soon as possible..
