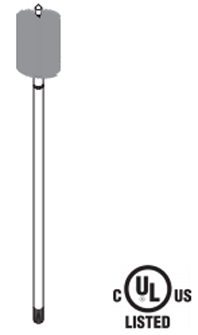

TerraStat® TS100 Dissipation Terminals
Code: TerraStat® TS100
⭐ Brand: Alltec / FR , Origin: US , Price: 0917 911 114 VND ,Contact : 429A Trung My Tay 5 Street, Kp3, Central My Tay Ward, District 12, HCMC
.png "TerraStat® TS100 Dissipation Terminals")
.png "TerraStat® TS100 Dissipation Terminals")
.png "TerraStat® TS100 Dissipation Terminals")
Designed to replace the traditional air terminal in conventional lightning protection systems, the TerraStat® TS100 converts a standard lightning rod system a Charge Lightning Dissipation Terminal System, which mitigates the chances of a direct lightning strike to any building or structure on which it is installed. The TerraStat® TS100 assembly is constructed of high quality stainless steel. The stem section is available in various materials and sizes to be compatible with all standard lightning protection system components.
.png "TerraStat® TS100 Dissipation Terminals")
Numbering System
To order, simply follow the steps below to specify the type and size of the unit. The example below, shows how to order the TerraStat® TS100
| Example: TS100-C-12-12 | |||
| TS10 | C | 12 | 12 |
| (1) | (2) | (3) | (4) |
| (1) Type of Component | TS100 = TerraStat® TS100 |
| (2)Material | C = Copper, SS = Stainless Steel, A = Aluminum |
| (3) Diameter | 12=1/2” or 58=5/8” |
| (4) Length | 12 = 12”, 18 = 18”, 24 = 24” |
TerraStat® TS100 Dissipator Stainless Steel Air Terminals w/Copper Rod
| Part Number | Description | Weight |
| TS100-C-12-12 | TerraStat® 100, Copper, 1/2” Dia., 12” Long, Solid Rod | 1.0 lbs (0.4 kg) |
| TS100-C-12-18 | TerraStat® 100, Copper, 1/2” Dia., 18” Long, Solid Rod | 1.5 lbs (0.6 kg) |
| TS100-C-12-24 | TerraStat® 100, Copper, 1/2” Dia., 24” Long, Solid Rod | 2.0 lbs (0.9 kg) |
TerraStat® TS100 Dissipator Stainless Steel Air Terminals w/Stainless Steel Rod
| Part Number | Description | Weight |
| TS100-SS-58-18 | TerraStat® 100, Stainless Steel, 5/8” Dia., 18” Long, Solid Rod | 1.5 lbs (0.6 kg) |
| TS100-SS-58-24 | TerraStat® 100, Stainless Steel, 5/8” Dia., 24” Long, Solid Rod | 2.5 lbs (1.1 kg) |
TerraStat® TS100 Dissipator Stainless Steel Air Terminals w/Aluminum Rod
| Part Number | Description | Weight |
| TS100-A-12-12 | TerraStat® 100, Aluminum, 1/2” Dia., 12” Long, Solid Rod | 0.5 lbs (0.2 kg) |
| TS100-A-12-18 | TerraStat® 100, Aluminum, 1/2” Dia., 18” Long, Solid Rod | 0.5 lbs (0.2 kg) |
| TS100-A-12-24 | TerraStat® 100, Aluminum, 1/2” Dia., 24” Long, Solid Rod | 1.0 lbs (0.4kg) |
| TS100-A-58-12 | TerraStat® 100, Aluminum, 5/8” Dia., 12” Long, Solid Rod | 1.0 lbs (0.4 kg |
| TS100-A-58-18 | TerraStat® 100, Aluminum, 5/8” Dia., 18” Long, Solid Rod | 1.0 lbs (0.4 kg |
| TS100-A-58-24 | TerraStat® 100, Aluminum, 5/8” Dia., 24” Long, Solid Rod | 1.0 lbs (0.4 kg |
NOTE:
• All threads are machined to 1/2 - 13 UNC x .75”standard, otherwise add suffix THDX, where X is the nonstandard length in decimal inches.
• Other sizes available upon request
