Standard Installation of Sprinkler Tyco Ty4113
catalogs of sprinkler tyco nozzles standard meet UL and C-UL Ty-L reaction type spray flow coefficient k = 8.0 prestige Quality Best price Contact Hotline 0917911114

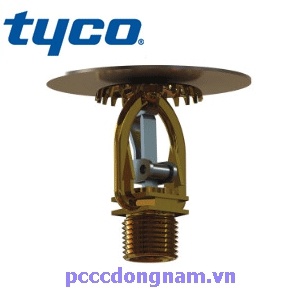

Tyco Ty4113 nozzles belong to the TY-L standard spray head line with K 8.0 spray flow. Tyco Ty4113 injectors are used in Tyco Sprinkler systems for storage storage. It is also used in fire-fighting applications below the floor.
Đầu-phun-Tyco-TY4113
Tyco TYCO TY4113
- Meeting standards: + UL and C-UL + FM
- Maximum pressure when working: 175 PSI (12.1 bar)
- Spray coefficient: k = 8.0 gpm / psi½ (115.2 lpm / bar½)
- NPT 3/4 inch type nozzle size -
Activation temperature:
+ 165 ° F (68 ° C) COLOR-painted frame
+ 212 ° F (100 ° C) frame is white
+ 280 ° F (138 ° C) Frame with blue
- Designed with defense protection shields triggered by the impact of spraying water higher nozzles to avoid trigger early when fire.
- Depending on the environmental conditions, the nozzles are covered with an anti-corrosion layer to extend the life.
