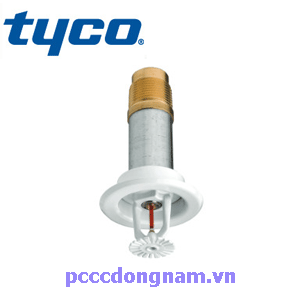

Sprinkler Tyco ty2235 spray horizontal direction
Where to buy, buy only automatic spray fire extinguisher ??? horizontal type direction coefficient k 4.9 Standard quick response LFII residential sprayer 100% genuine goods warranty mode 0917911114
Tyco Ty2235 injector horizontal direction belongs to the LFII residential navigation head line Quick response to spray flow k = 4.9. Nozzles are designed for use for residential areas such as houses, apartments, dormitories, hotels ...
Tyco Tyco Ty2235 injector specifications
- Nozzles applied to fire fighting systems:
+ Dry and wet residential sprayer system for fixed housing has one or two apartments and mobile homes according to NFPA 13D standards.
+ Dry and wet residential sprayer system for housing facilities up to four floors according to NFPA 13R standards.
+ Dry and wet injection system for a part of residential areas according to NFPA 13 standards.
- Use in cases:
+ Nozzles in dry pipeline systems are located in low temperature areas, freezing.
+ Nozzles or partial pipeline in the wet system in a low temperature area, freezing.
+ Sprayers in the fire-fighting system need to periodically discharge to avoid freezing.
- Meeting: UL and NSF / ANSI 61.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray coefficient: k = 4.9 GPM / Psi½ (70.6 LPM / BAR½).
- Size of nozzle: 1 inch NPT (DN25).
- Activation temperature:
+ 155 ° F (68 ° C) Red glass tube
+ 175 ° F (79 ° C) Yellow glass tube
- There are high heat sensitivity and water distribution characteristics are specially designed to control fire and increase the ability of residents evacuation.
- Use the type of tuning cover with a distance of 12.7 mm (which reduces the accuracy of the nozzle length of the nozzle to cut when installed).
You will receive a quote from us as soon as possible..
