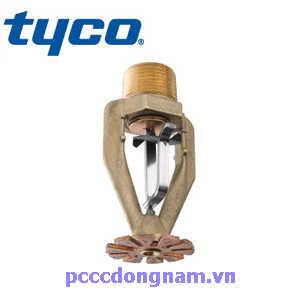

Sprinkler Tyco Model ESFR 25 TY9226
Instructions on how to start Horing fire alarm cabinets and program Horing fire alarm cabinets Horing QA16 fire alarm center user manual HC-871 manual ACCUMULATION INDICATION LAMP How to reset the fire alarm system What is Battery Fault Reaction Fast, K=25.2, Warranty for 6 months, genuine Tyco, Available goods.. contact 0917911114
K-factor 25.2 Direction type: Pendent
SlopeMaximum 2 in.12 in (16.7%) Coverage up to 100 ft2 (9.3 m2) In some cases, installed stan-dards allow a larger coverage area. Minimum coverage area of 64 ft2 (5.8 m2) per NFPA 13 / FM 2-0Maximum Spaces12 ft (3.7 m) for building heights up to 30 ft (9.1 m) 10 ft (3, 1 m) for building heights greater than 30 ft (9.1 m) Minimum clearance 8 ft (2.4 m) Minimum cargo clearance36 in. (914 mm) Ceiling-to-ceiling DistanceNFPA - 6 in to 14 in. (152 mm to 356 mm) Ceiling-to-ceiling heat sensing element centerline FM 2-0 for Sprinklers Store.
You will receive a quote from us as soon as possible..
