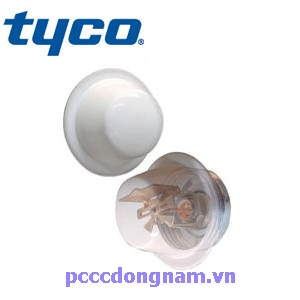

Tyco Ty4332 Sprinkler Head (TYCO Model CHEC 8.0 K-Factor), Cov-erage fast response concealment, Cov-erage extended range, Spewlers Sidewall as decoration, 3mm type nozzle with unique visor Designed for concealment. It is the best choice for architecturally sensitive areas such as dormitories, hotel rooms, reception areas, office buildings, banquet halls, conference rooms and hospitals. The Tyco Ty4332 Sprinkler Head features a soft contour of the cover plate that optimizes the low profile while blending with the surrounding surface. The plate, while maintaining responsive saturation, has been specially designed without vents to increase its appeal while helping to avoid hanging objects the sprin-kler, such as trouser pockets. coats and clothes hangers, can cause an inadvertent operation. The Tyco Ty4332 Sprinkler Head is designed for installation along a wall or side of a beam and below a smooth and flat ceiling. Horizontal sprinklers are used instead of standalone or vertical sprinklers for aesthetics or constructions where piping in the ceiling is not desirable. They are used in automatic sprinkler systems designed according to standard installation rule NFPA 13, for lightly hazardous occupations. The Sprinklers Model CHEC Tyco Ty4332 Quick Response Heat Sensitivity Rating Sprinkler Head provides quick response extended coverage rating up to 16 ft x 16 ft coverage. The detachable two-piece design of the Cover and Support Cup Assembly allows sprinklers to be installed and the fire protection system pressure tested prior to wall installation or finishing coating application. Additionally, pushing the split push on and off the sprinkler's two-piece design provides for 1/2 in (12.7 mm) of horizontal adjustment. The Tyco Ty4332 CHEC Model Sprinkler Head is shipped with a protective cap. The protective cap is temporarily removed for installation and it must be replaced to help protect the sprinkler while the wall is being plastered, wallpapered or painted. When the installation is complete, the Guard must be removed and the Visor Installed. The protective cap must be removed to ensure proper functioning of the sprinkler.
Technical information of Sprinkler Sprinkler Tyco Horizontal Ty4332
- Meets standards: UL, C-UL and NYC
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=8.0 GPM/psi½ (115.2 LPM/bar½).
- Nozzle size: 3/4 inch NPT (DN20).
- Size of glass tube: 3mm Horizontal adjustment distance: 1/2 inch (12.7 mm).
- Activation temperature:
+ 155°F (68°C) for use with a cover with an activation temperature of 139°F (59°C).- The maximum coverage area is up to 23.7 m².
You will receive a quote from us as soon as possible..
