Sprinkler Heads Ty3388 Quick Response Horizontal
Supplying nozzles Model WS TY3388, TY3488 Ty3388 is a special fire fighting sprinkler WS Quick response Spray flow K=5.6 Meets UL, C standards -UL, NFPA and NYC FM200 system consulting & construction - 0917911114

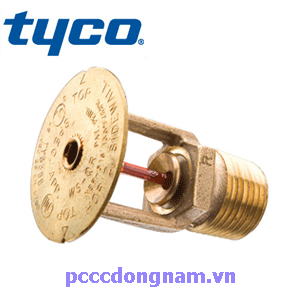

Ty3388 Fast Response Horizontal Sprinkler Head belongs to the special WS series of quick response sprinklers with spray flow K=5.6. They are designed to provide moisture and protection for glazing or ceramic applications in construction or for outdoor firefighting use as an open, exposed flame retardant.
Quick Response Horizontal Response Ty3388 Sprinkler Head Specifications
- Meets standards: UL, C-UL, NFPA and NYC
- Injection coefficient: 5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Maximum distance between nozzles: 8ft (2.44m)
- Minimum distance between nozzles: 6ft (1.83m)
- Activation temperature:
+ 155°F (68°C)
+ 200°F (93°C)
- Material of outer coating: Copper, polyester, Cr
You will receive a quote from us as soon as possible..
