Sprinkler head Tyco UK Upright ty3136
++ Special Nozzle TY-FRFS +++ Quick Response Type ++++ Spray flow Factor K= 80 LPM/bar½ CEA 4001 standard shelf sprayer Contact Contact Dong Nam Company for technical consulting
The Tyco UK Upright Sprinkler head ty3136 belongs to the special TY-FRFS series of quick-response sprinklers with a spray flow rate of K=80 LPM/bar½. The TY3136 is designed flat against standard nozzles, allowing them to be used with lower clearances above open ceilings and store shelves in accordance with CEA 4001.

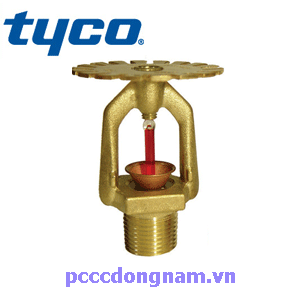

Nozzle-Sprinkler-Tyco-UK-Direction-Upright-ty3136
Technical information Tyco UK Upright Sprinkler Head ty3136
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 80 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
- Can be equipped with a protective frame to avoid physical collisions.
- Plating material: copper
You will receive a quote from us as soon as possible..
