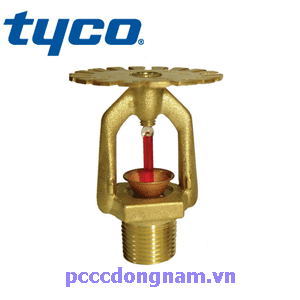

Sprinkler head tyco UK Upright 1136
Special Spray Head TY-FRFS Fast Response Flow K =57 Glass tube size 3mm 0917911114
Tyco UK Upward Sprinkler Head 1136 series special TY-FRFS quick-response sprinklers with coefficient K=57 LPM/bar½ . Nozzles designed according to CEA 4001 or EN12845, are flat compared to standard nozzles, allowing them to be used with lower clearances above open ceilings and store shelves.
Sprinkler head tyco UK Upright 1136
Nozzle-Sprinkler-tyco-UK-Mount-Upright-1136
Description of tyco UK Sprinkler Head 1136
- Meet standards: VdS; CEA 4001; EN12845; LBCP
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K= 57 LPM/bar½
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+ 135°F (57°C) Orange glass tube.
+ 155°F (68°C) Red glass tube.
+ 175°F (79°C) Yellow glass tube.
+ 200°F (93°C) Green glass tube.
+ 286°F (141°C) Blue glass tube.
-Can be equipped with a protective frame to avoid physical collisions.
- Plating material: copper
