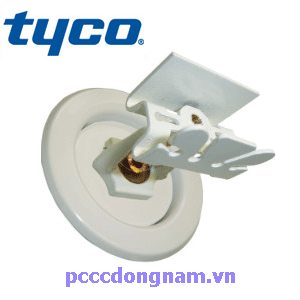

Sprinkler head horizontal TY4334
Address 429A Central American Western 5 Place Selling Price Fire Fire Extinguisher Best Family Family Meet UL, C-UL, FM, NSF / ANSI 61 Horizontal Spray Type Quick Reaction Residential Area Sovietstem K 5.8 Genuine Commitment 100% Genuine warranty commitment Buy now 0917911114
Sprinkler tyco sprinklers in the horizontal direction TY4334 belongs to the LFII residential nozzle line of fast response to the spray volume K = 5.8. Sprayers are designed for use for residential areas such as housing, apartments, dormitories , hotel…
Specifications sprinkler sprinkler horizontal directions TY4334
- Nozzles applied to fire fighting systems:
+ Dry and wet residential sprayer system for fixed housing has one or two apartments and mobile homes according to NFPA 13D standards. + Dry and wet residential sprayer system for housing facilities up to four floors according to NFPA 13R standards.
+ Dry and wet injection system for a part of residential areas according to NFPA 13 standards.
- Religious: UL, C-UL, NSF / ANSI 61
- Maximum working pressure: 175 psi (12.1 bar).
- Spray coefficient: K = 5.8 GPM / Psi½ (83.5 LPM / BART).
- Size of nozzle: 1/2 inch NPT (DN15).
- Activation temperature: + 155 ° F (68 ° C) Red glass tube
+ 175 ° F (79 ° C) Yellow glass tube
- There are high heat sensitivity and water distribution characteristics are specially designed to control fire and increase the ability of residents evacuation.
- There is an appropriate cap for false ceiling works, using a stylish two-layer capture cap 20. The capture cover is a total distance of 12.7 mm, which reduces the precision the length of the nozzle length to cut when installation.
- Plating material: natural copper, signal white or chrome plated.
1 Sprinkler Tyco>>Tại đây
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking chính Hãng >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
