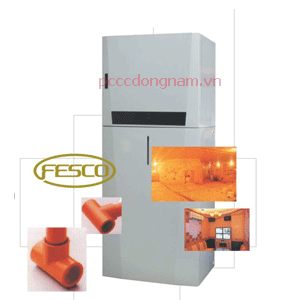

Sprinkler automatic fire sprinkler control cabinet
Made in Korea
Automatic fire sprinkler control cabinet can be directly connected to the water line to use for fire protection. The system is also capable of performing water spraying when water pressure is low such as pubs, restaurants, Cofeee shops, etc.
Can be easily installed a small house, capable of providing fire protection for about 330 square meters.
1) The product is certified by KFI
• All products are certified by KFI to ensure high quality and performance
. 2) Luxurious design
• Yem-style luxury design is combined with the interior of the house.
• Simple I-con touch is easy to use.
3) Easy installation and maintenance service
• Design of automatic sprinkler fire sprinkler control cabinet for easy installation to small places.
• Convenient delivery by reducing total weight.
• Easy service and maintenance by simple internal piping design.
4) Quick operation and early fire extinguishing
• Respond quickly and correctly by monitoring secondary piping system pressure and water flow
• Fast operation with an automatic inhaler and improved operational reliability with an additional hood valve Install inspiratory plumbing.
5) Features to ensure operation in case of emergency
• Battery backup in case of emergency (Automatically switch to battery for pumping in the event of a designed mains power outage of 20 minutes when fully charged).
• holds up to 330 liters of internal water tank for fire fighting and additional fire the first stage of supply.
• Install anywhere including low water supply pressure by internal inverter pressurization pump
• Monitor water tank volume water level meter and low water level sensor.
Working conditions Automatic fire sprinkler control cabinet
1. This system has been certified KFI with the specifications below.
- Pressure range of water supply line: plumbing 15A, more than Min.1kgf / (pipe Min.15A)
- Operating temperature range: 1℃ ~ 40
- Diameter and length of water pipe required: maximum horizontal length 35m (25A pipe) maximum horizontal length 75m (32A tube)
- Mandatory sprinkler: K50
2. If freezing of water may occur where the cabinet may take appropriate action to protect the product.
3. Sprinkler head (output water volume: 50L/min)
There are 02 Models Automatic fire sprinkler control cabinet
+ Model : ESS - 24S1
+ Model : ESS - 24S2

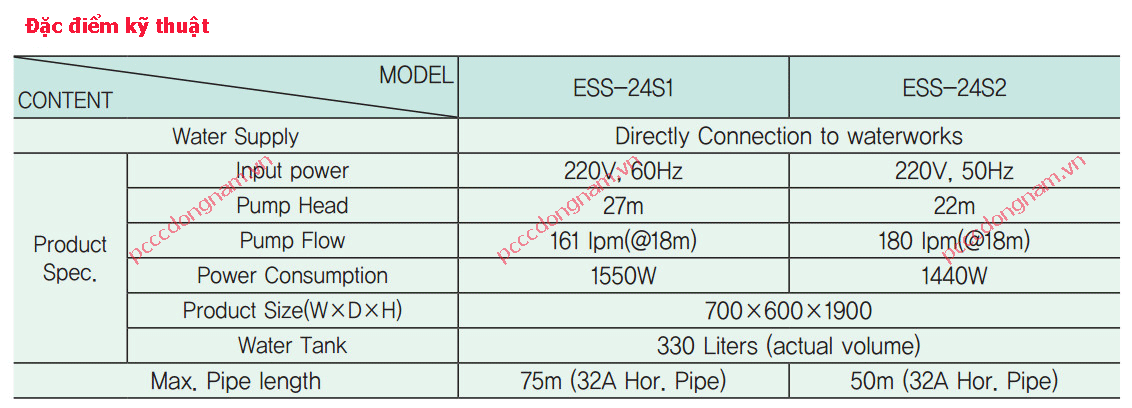

Specification

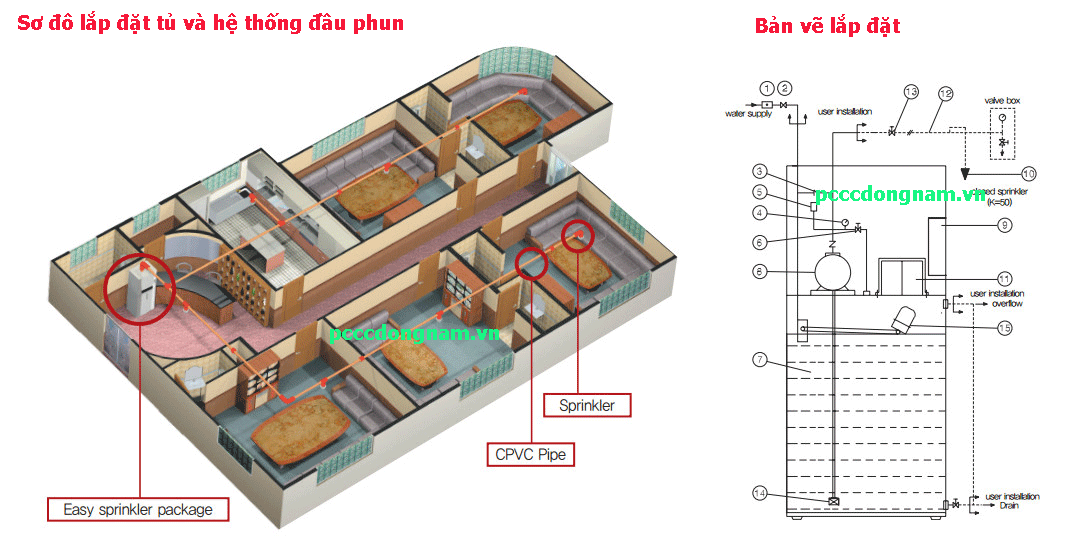

System installation diagram tủ điều khiển phun nước chữa cháy tự động Sprinkler
Dong Nam Fire Protection Company is an importer, distributor, consultant and installer of genuine sprinkler fire protection equipment. If you want to buy in quantity, please contact the hotline: 0917 911 114 or you can refer to other gas fire fighting systems here.
You will receive a quote from us as soon as possible..
