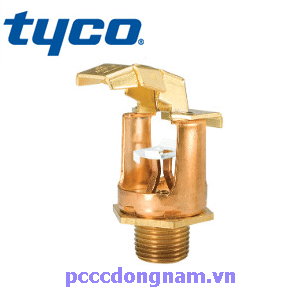

Special tyco sprinkler Nozzle TY3185
Meets UL, C-UL Standards Quick Response SD3 Special Injector Flow K 5.6 Warranty 6 Months Free Delivery Inner City FM200 Fire Extinguishing System Installation Consultancy 0917911114
Tyco omnidirectional sprinkler head TY3185 belongs to the special SD series of SD3 quick-response sprinklers with spray flow K=5.6. They are designed for attic applications such as workshops
- Meet standards: UL, C-UL
- TY3185 spray only in one direction (See spray direction in catalog)
- Cost savings by reducing the number of nozzles and branch lines compared to systems using standard nozzles
- The Model SD sprinkler must be installed in a vertical direction and not tilted with a slope. In some cases a swivel can be used to fulfill this requirement. - Usually used in conjunction with AP series nozzles or standard nozzles.
- Spray flow: 5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Coverage: 400ft2 (37.2m2) Trigger Temperature: 200°F (93°C)
- Outer coating material: Copper
- Activated by glass tube
You will receive a quote from us as soon as possible..
