SFD-230-W,Outdoor flash fire alarm siren (white)

Manufacture: detnov
Product code: SFD-230-W

Outdoor flashing siren
✔️ 32 tones to choose from, 24Vdc power supply, consumption: 8 to 36 mA depending on tone. ,Protection class : IP33C , White , Sound power 78 to 116 dB, depending on selected tone ,CPR certificate EN54-3. Dimensions: 100 x 75 mm.


Consulting hotline: 0944934114
Product information

°Compatible with conventional control panels and Detnov analog siren modules

° Low consumption and high efficiency 32 configurable tones 3 configurable volumes (high, medium, low)

° Easy installation, with base ° EN 54-3 Certification


Voltage 21 to 28 VCC
Consumption in alarm @ 24 V 9 to 34 mA, depending on tone
Sound @ 1m 76 to 117 dB, depending on tone

32 configurable tones

3 configurable volumes (high, medium, low)

Temperature -20ºC to 70ºC
Humidity 95%
Protections class

SFD-220 - IP21

SFD-230-  IP33C

Stand Dimensions (SFD-220):

High stand size (SFD-230)

100 mm x 75 mm

85 mm x 75 mm

Structure ABS
Certificate EN 54-3
Number of certificates

SFD-220 Nº : 0370-CPR-2965

SFD-230 Nº : 0370-CPR-2965

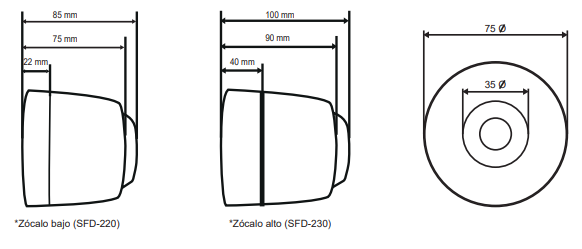

Dimension drawing
