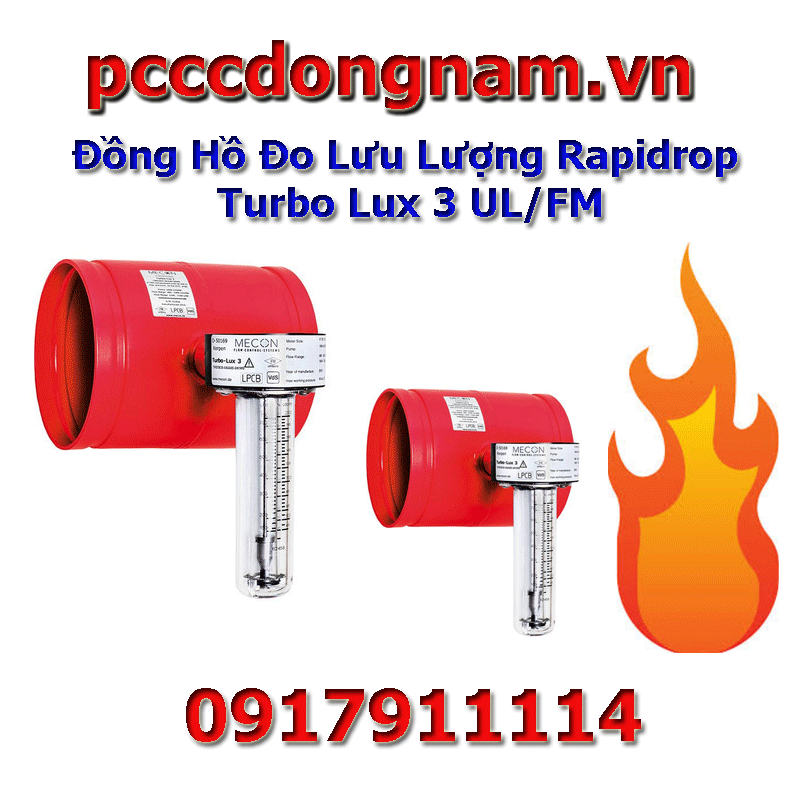

Rapidrop Turbo Lux 3 UL/FM Flow Meter
Turbo Lux 3 Flow Meter aka Rapidrop Turbo Lux 3 Flow Meter UL/FM standard: size DN50/2" - DN300/12"
✅ Genuine supply
✅ Unlimited quantity
✅ Genuine warranty
✅ Contact 0917 911 114 for free consultation 24/7
Detailed Description of Rapidrop Turbo Lux 3 UL/FM . Flow Meter
Turbo-Lux 3 flow meter is used to measure the volume of transparent liquid and gas flow in closed pipelines. Installation position and direction of flow are flexible. Areas of application focus on use in fixed water-based fire suppression systems in water supply test tubes. With only two components, the Turbo Lux 3 is supplied as standard with ISO6182-12 slotted end connections for ease and speed of installation.
The main features of Turbo Lux 3 include:
• Nominal sizes DN50/2" to DN300/12"
• Pump flow rates 185 - 19 000 lpm (50 - 5 000 USgpm)
• Measure flow range 75 - 38 000 lpm (20 - 10 000 USgpm)
• Measurement accuracy certificate provided as standard for ring gauges (optional calibration certificate)
• Easy installation with slotted connections
• Unique installation assembly, with only one threaded connection (no tools required)
• Can be installed at any angle of the pipe, across vertical.
• Long life, stainless steel standard up to DN100 Rapidrop Turbo Lux 3 UL/FM . Flow Meter

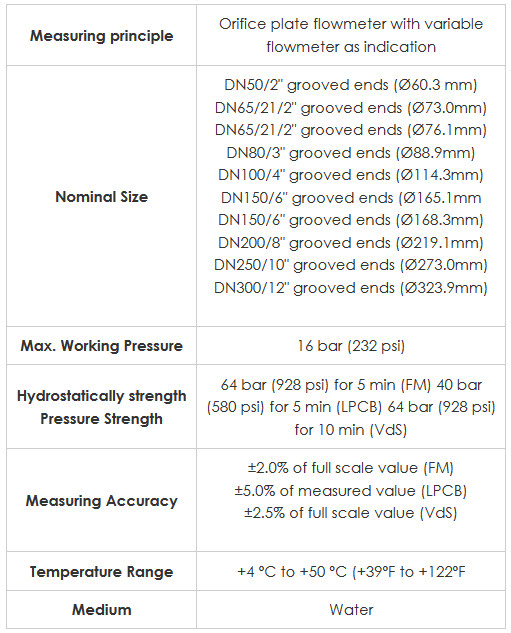

Specifications
✅ Size DN50/2" - DN300/12"
✅ Maximum working pressure 16 bar (232psi)
✅ Standard LPCB, FM, VdS
✅ Temperature +4 C to +50 C (+ 39ºF to +122ºF)
✅ Connection : Groove

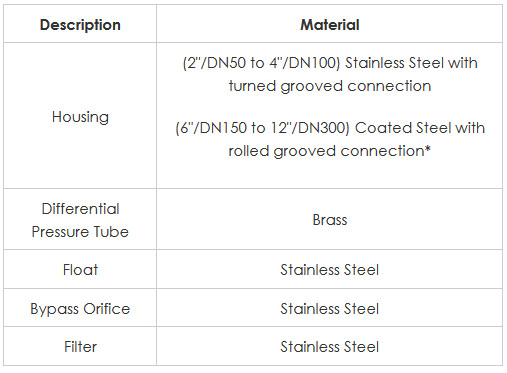

Material Featured Rapidrop Turbo Lux 3 UL/FM . Flow Meter
