Detailed description of Rapidrop Pump Starter Dashboard

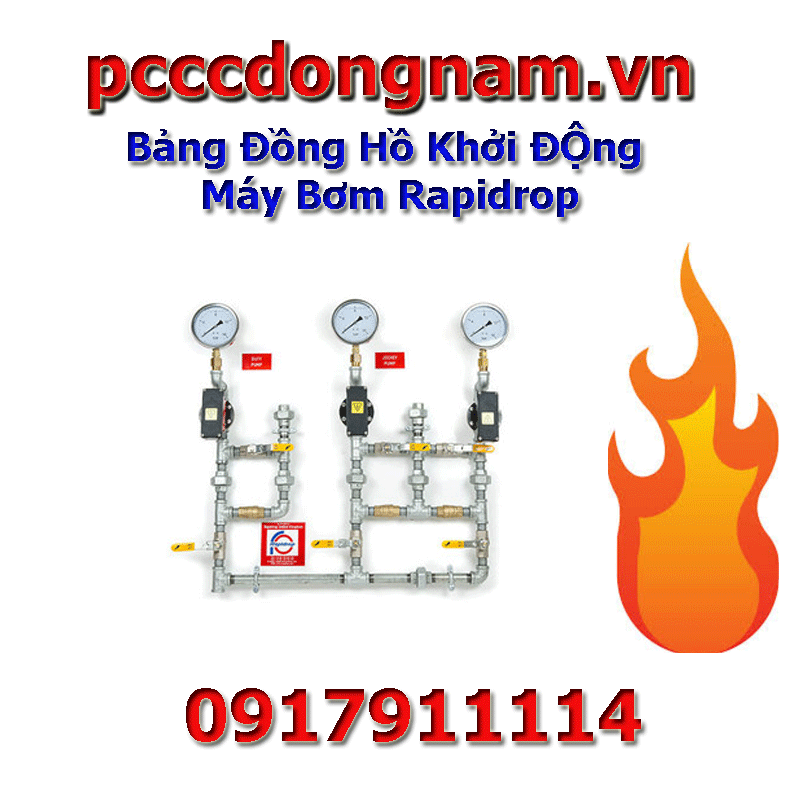

Rapidrop pump starter panels are designed to allow initial installation and testing of sprinkler system pump start pressure switches in compliance with BS EN 12845. Each main pump has two pressure switches and the jumper pump has a single switch. The pressure switches can be isolated so that its functionality and cut-off pressure can be verified during system maintenance. The special arrangement of the ball and check valves means that even if all switches are isolated, a drop in system pressure will still initiate pump operation. As an added safety measure, lockable ball valves are used to reduce the risk of them being accidentally closed.
✅ Supplied ready for wall mounting
✅ Each arrangement has a separate test arrangement and connects to a common drain
✅ Meet BSEN12845 (dual conversion) Pressure is tested to 17.5, 31.25 or 50 Bar before sending depending on pressure required.
✅ Available in 14 Bar, 25 Bar and 40 Bar
✅ Can be produced to customer specification and drawing

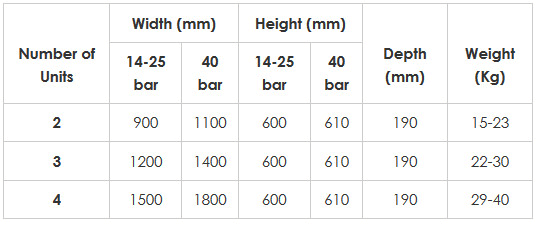

✅ Assembled at Rapidrop UK factory Dimensions and Weight Rapidrop Pump Starter Dashboard

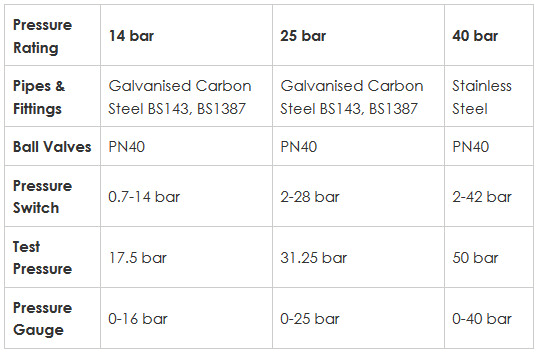

Đặc điểm kỹ thuật vật liệu Bảng Đồng Hồ Khởi ĐỘng Máy Bơm Rapidrop
Tổng hợp các loại đồng hồ đo lưu lượng, áp suất dòng chảy..Tại đây
